Socket Distribution Boards



  • 1000 onwards INR/Piece

  • Supply Ability : 100 Piece Per Month

Product Description

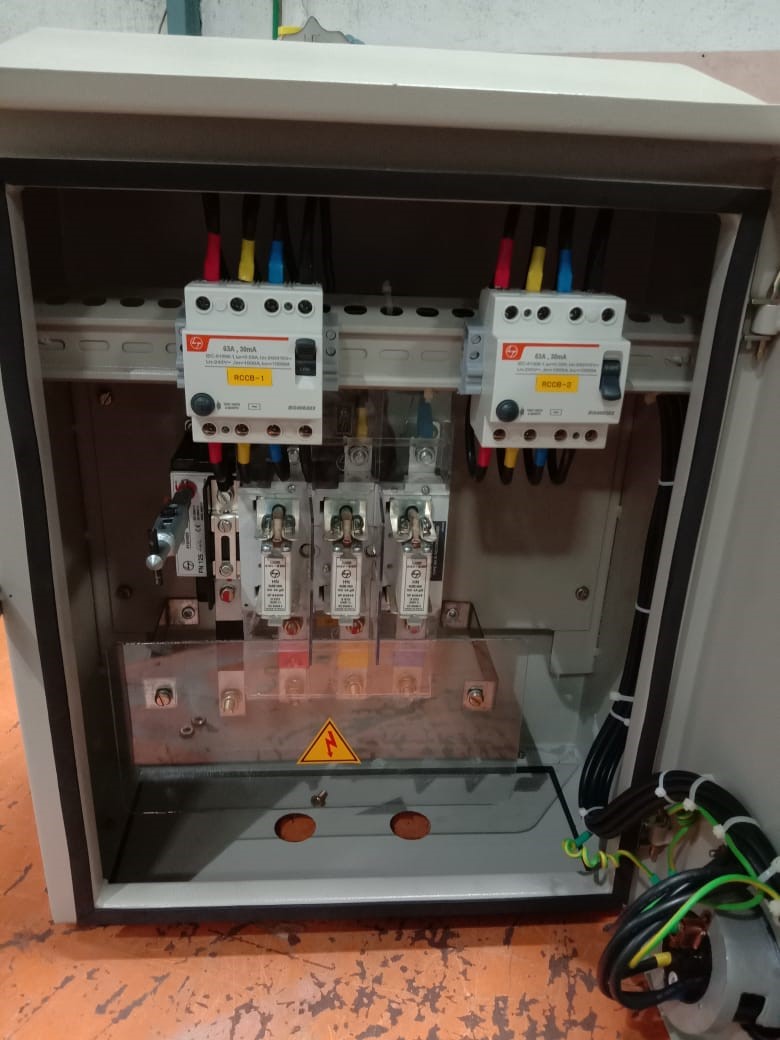

Socket Distribution Boards

Distribution boards are most commonly designed for distributing electrical energy in commercial and residential buidling. These are one type of kiosks which are having many fuse units used in various circuits designed using copper or aluminium bus bars which are used for connecting circuits across the supply terminals. The most commonly found boards have copper or aluminium bus bar strips which are fitted on the back wall of metal kiosk used in insulator supports.

With the help of isolation switch, one bus bar strip is fixed with phase terminal and another one is connected with the neutral terminal. Generally fuse units are placed parallelly which are connected with the phase busbar, which feed their own circuit. Neutral of all the circuits are connected directly with the normal bus bar. This must be noted that cable which feeds the distribution board should to enough capable for carrying maximum current load. No limitation has been set on the number of circuits that can be connected with these board but it is also considered best to use sub distributing boards for larger networks installed in multi-storage buildings. Every sub distributing boards are connected with the main one with a link switch. Most commonly these boards are used for mains supply and sub distributing boards are fixed near the loads.

Features of Socket Distribution Boards:

  • * Convenient to operate
  • * Compact
  • * Widely used in industrial sectors

Applications:

  • * Construction Field
  • * Chemical Industries
  • * Oil Industries
  • * Power Transmission & Distribution
  • * Cable Industries, Plastic Industries
  • * Packaging Industries
  • * Texturizing Industries
  • * Pharmaceuticals Industries
  • * Paint Industries
  • * Metal Industries
  • * Cement Industries



Terms of Payment:  40% advance along with P.O. and balance against proforma invoice

Delivery Time:   Within 3-4 weeks

Product details

Frequency

50-60 Hz

Automation Grade

Semi- Automatic

Operation Voltage

415 V

IP Rating

IP42

Material

Mild Steel

Surface Finish

Powder Coated

Rated Current

200Amp

Surface Finish

Powder Coated
